flushed sail panel tweeter mounts, components install, dailup run and hide

paulkeith

Full Access Member
Joined
Nov 27, 2006
Messages
133
Reaction score
0
Location
Da A
alright, here's the system specs:

current:

sony headunit, autotek 900.4 stealth series amp, ED 11ov.2 sub in a custom box.

in progress:

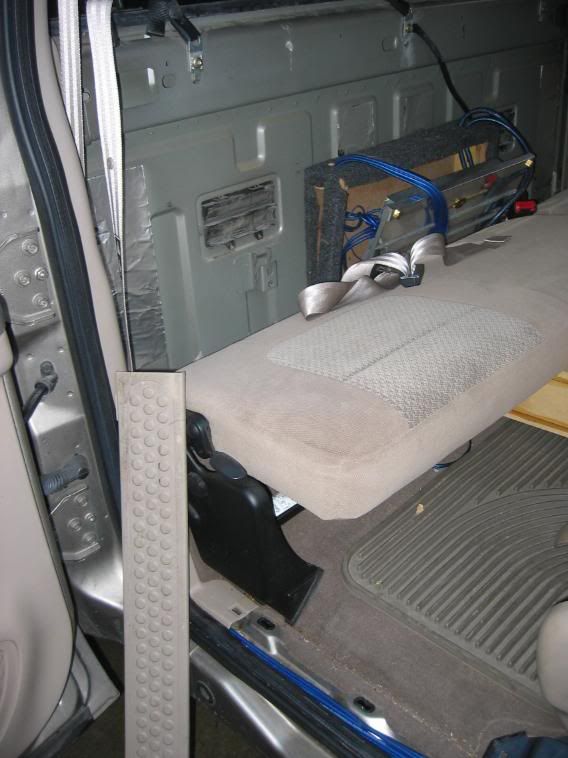

CDT EF-61 comps in the fronts, peel n' seal roofing material as sound deadening on the back cab wall. this is gonna be it for the truck stereo.

I used PVC pipe that fit the size of my tweeter cups, and cut it to teh angle i wanted.

so....here's a pic by pic of the tweet mounts.:

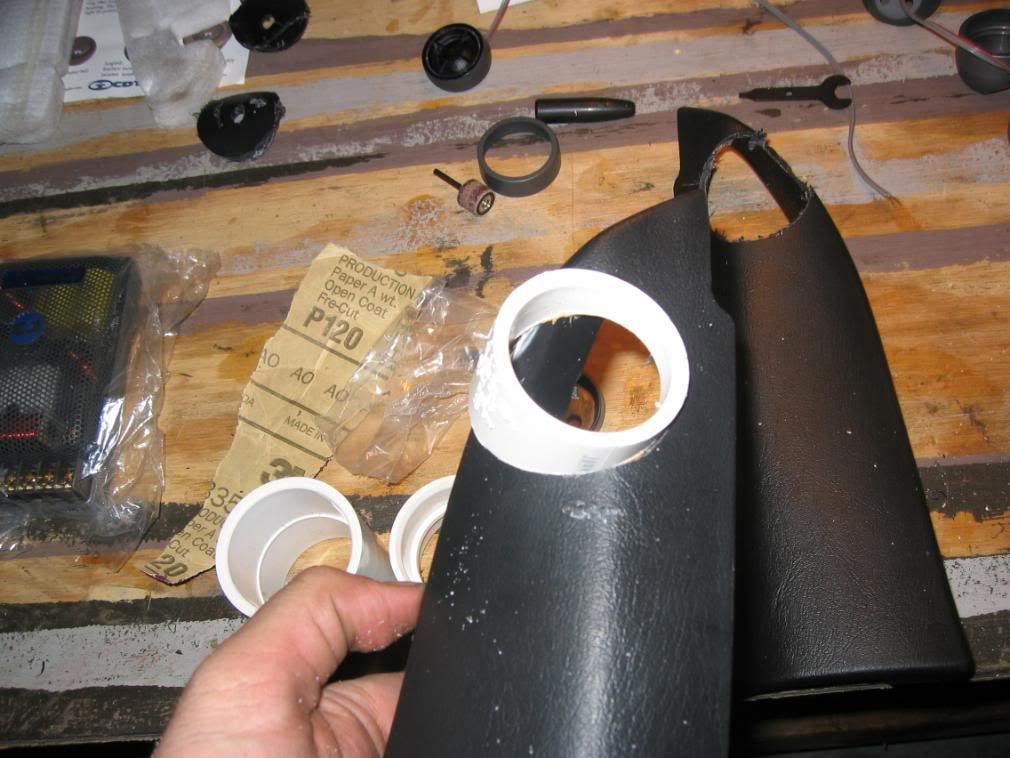

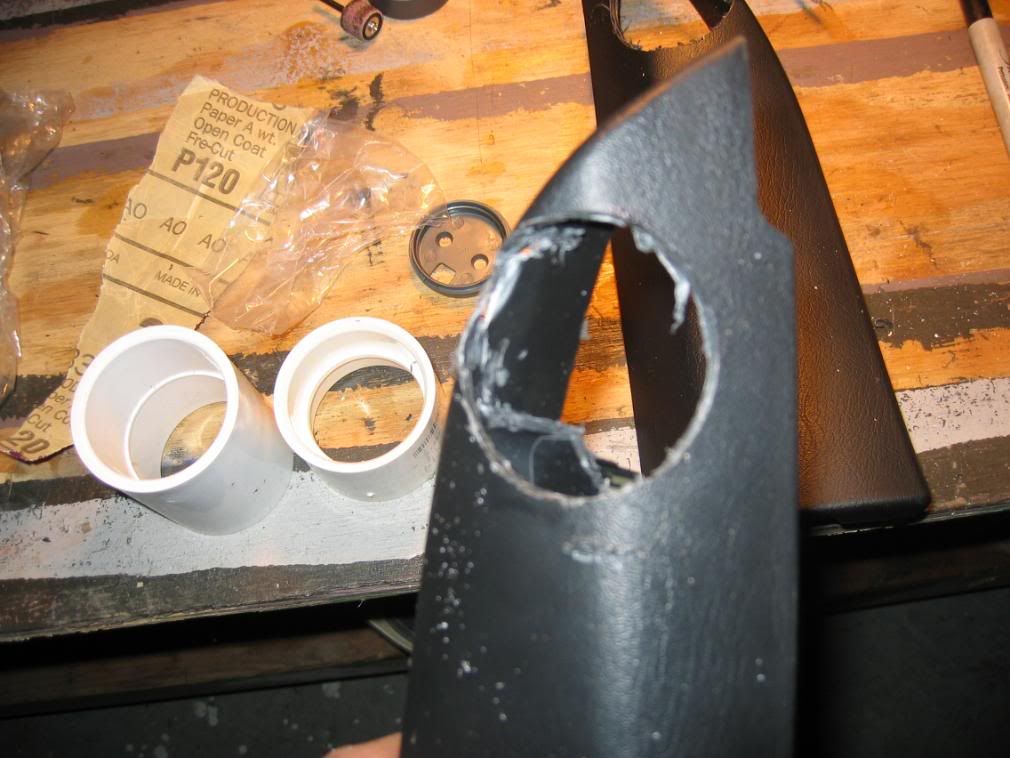

take the hole saw to them for the PVC:

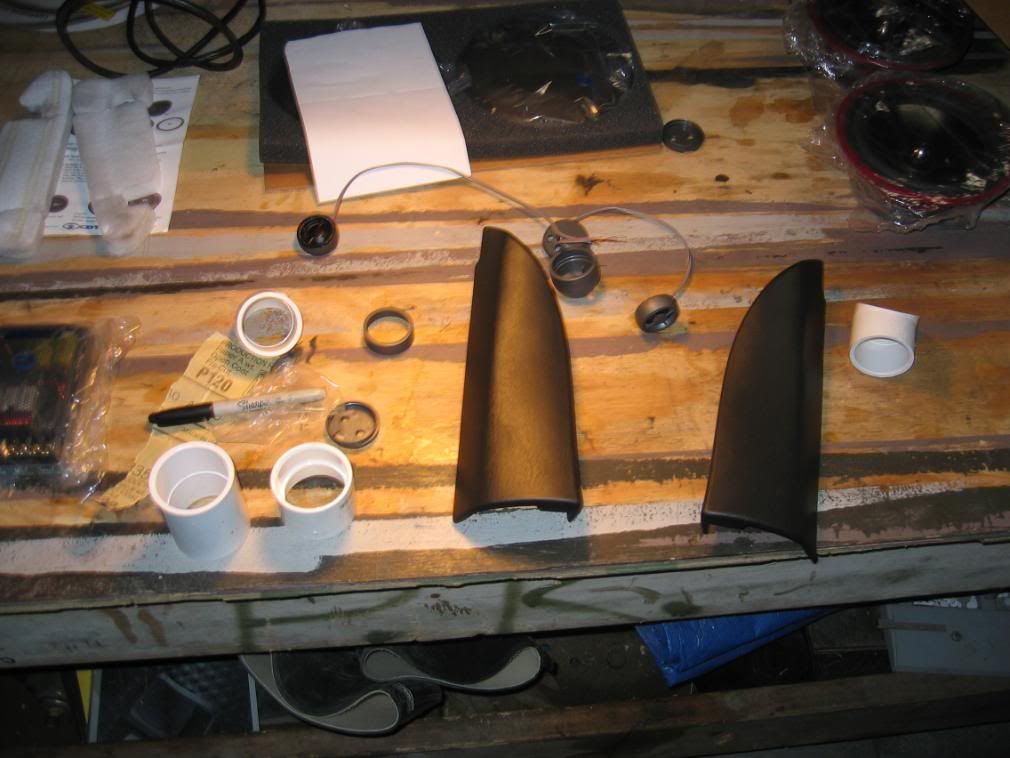

basic shape:

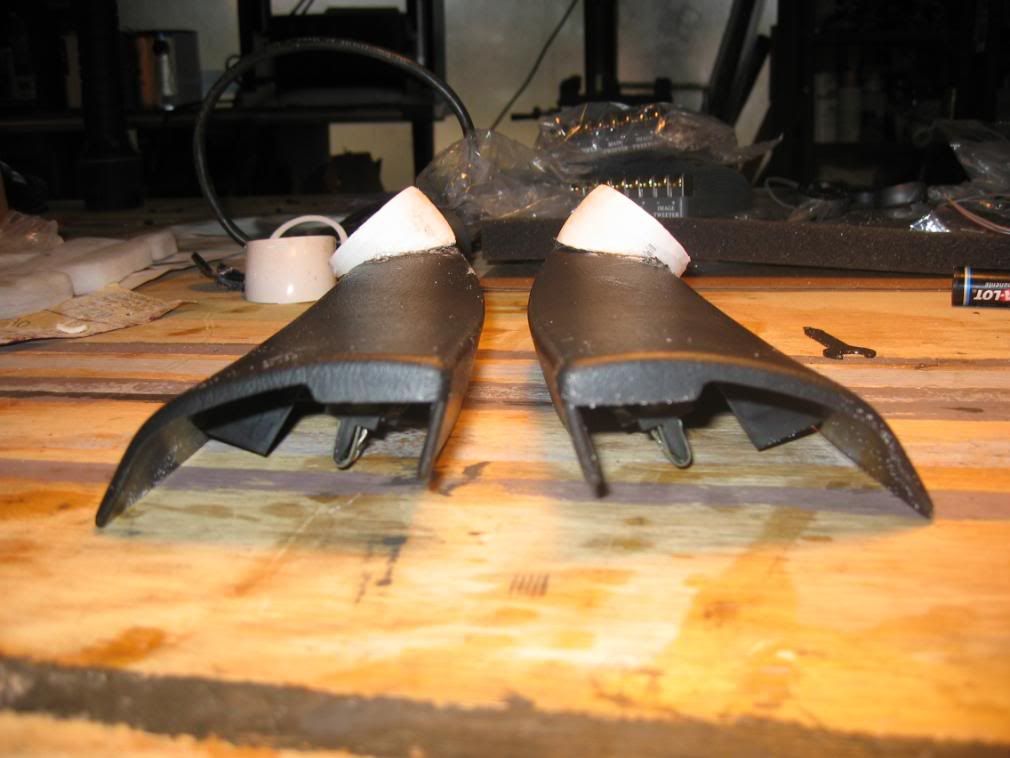

both glued on:

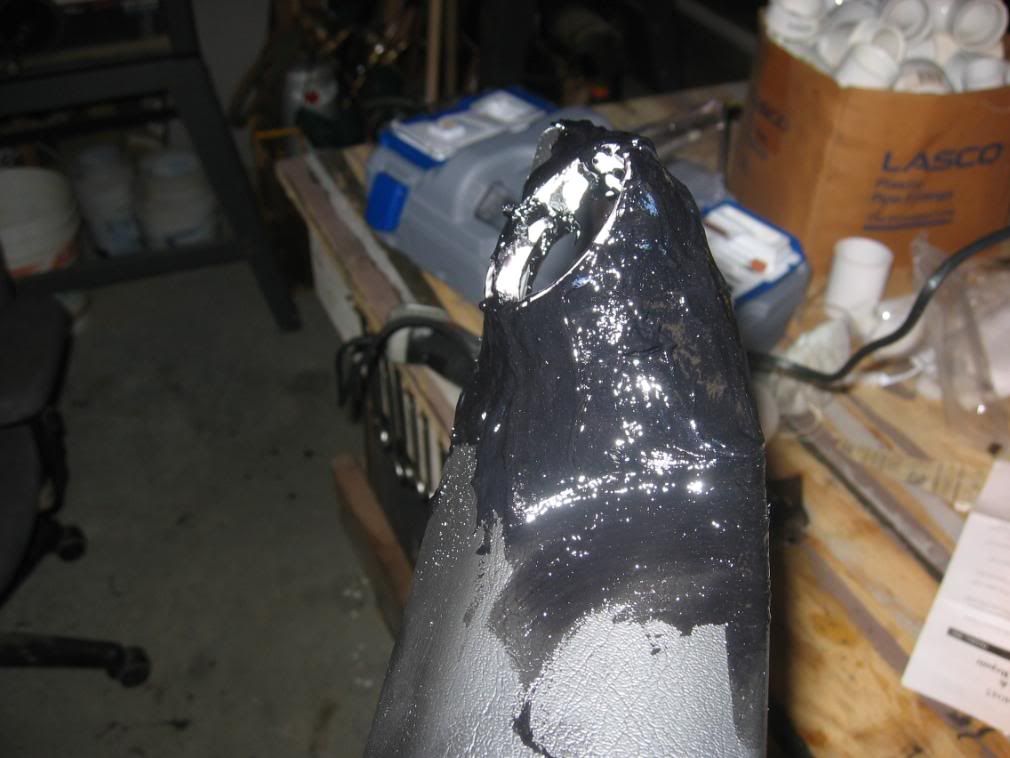

apply the semi-rigid liquid plastic, called Duramix 4040 ($36 shipped from levinauotparts.com)

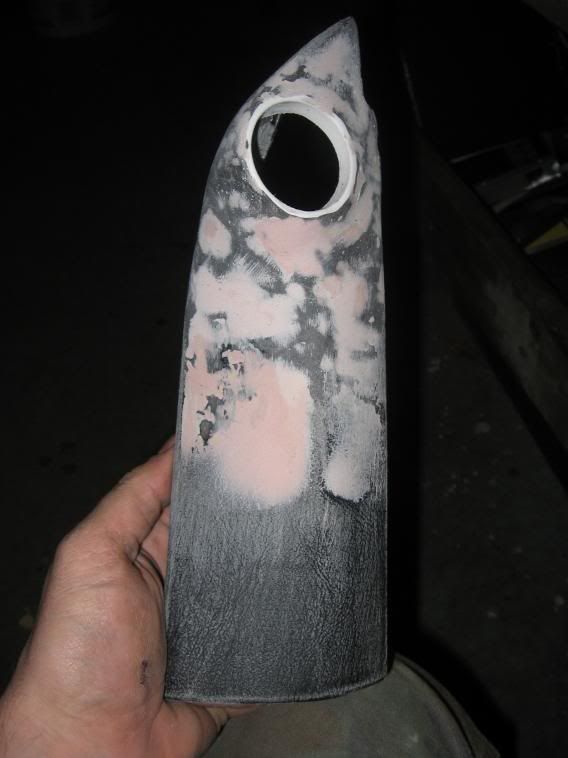

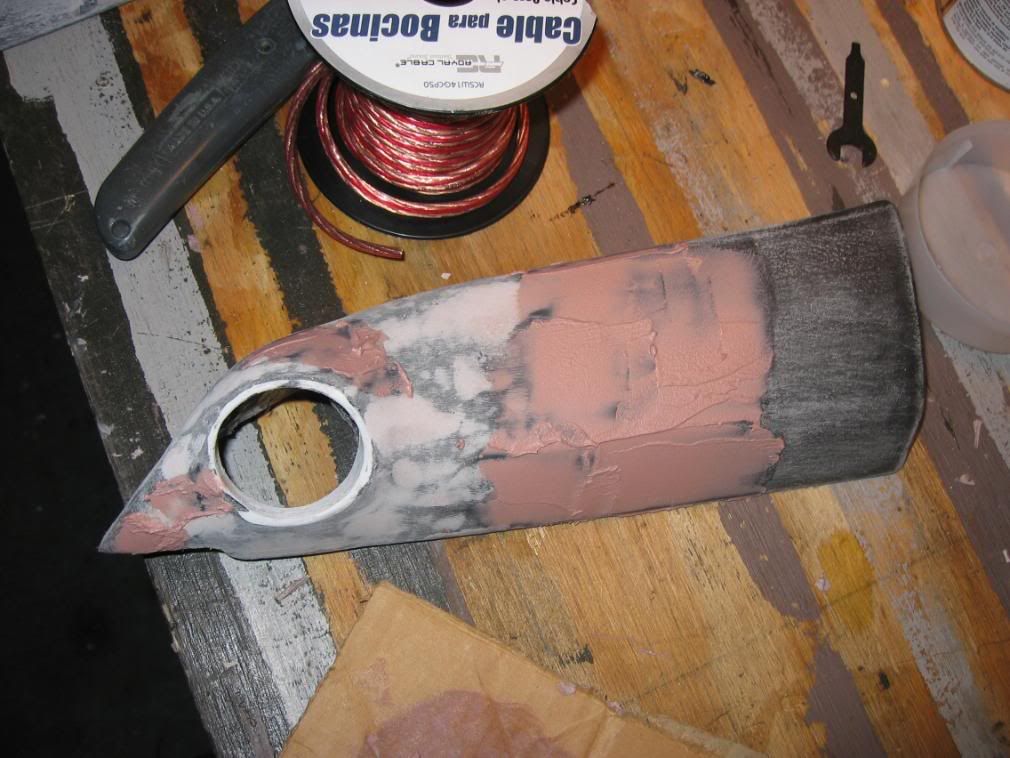

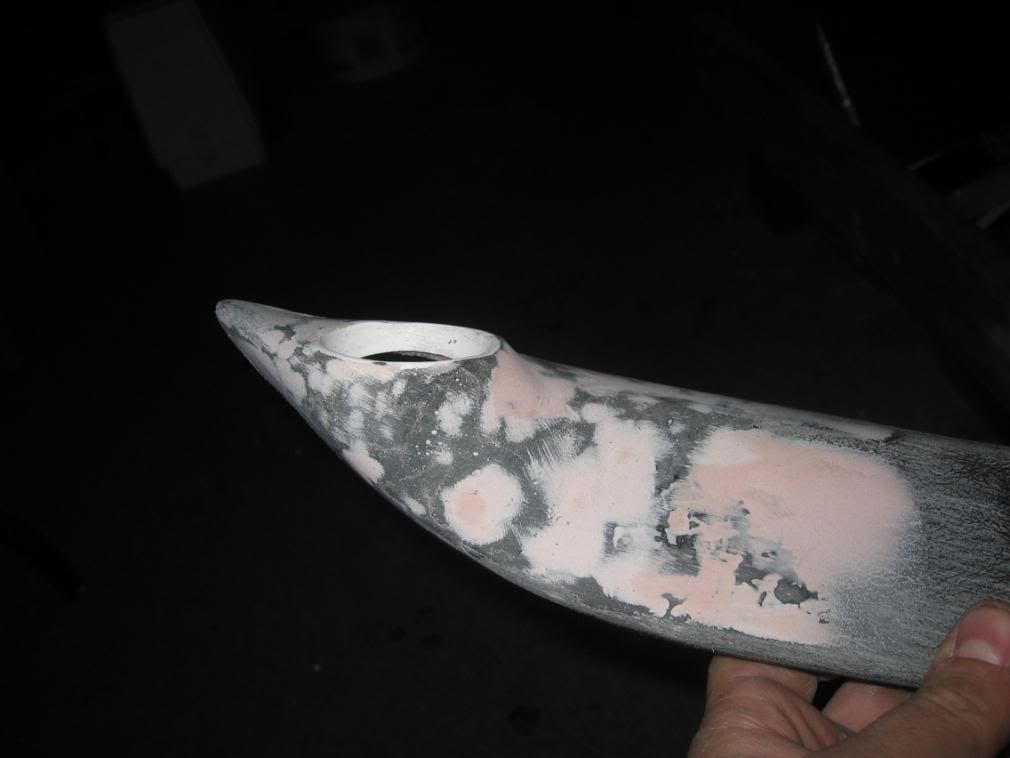

here i got a little lazy with the pic taking. before this next pic, i chucked a sanding drum into my drill press and spent about 1 hour on each mount making the basic shape i wanted. after that came a coat of bondo, much sanding, another coat of bondo....to this pic:

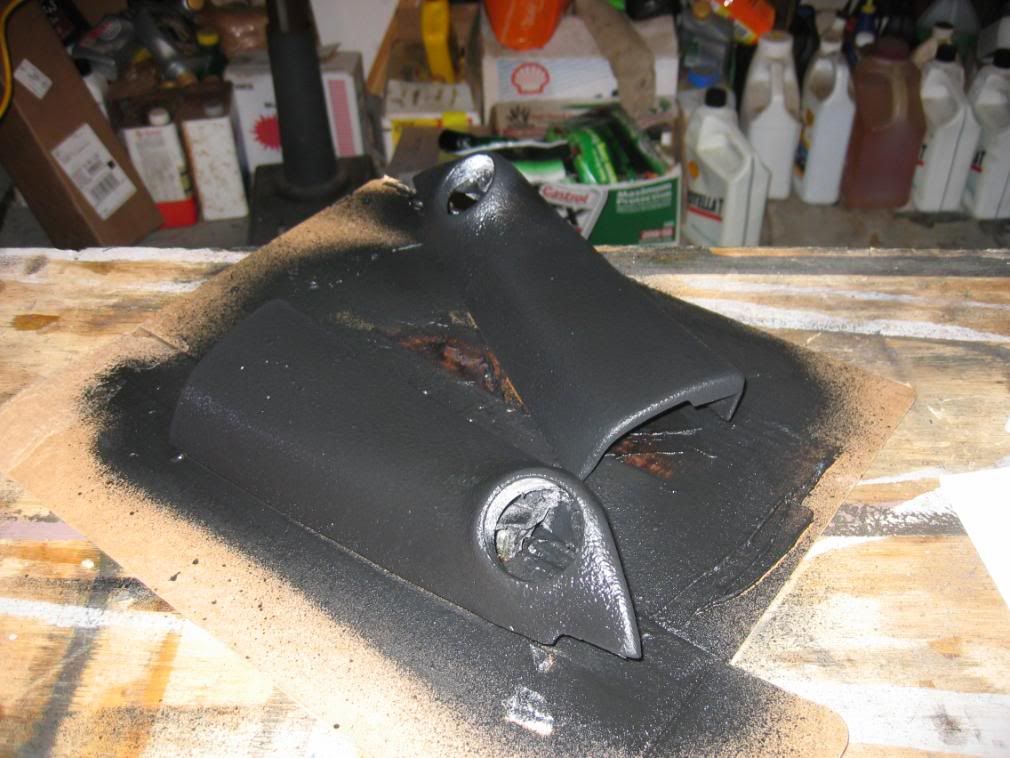

ready for paint:




I painted them with DupliColor truck bed coating, available from wallyworld:



paulkeith

Full Access Member
Joined
Nov 27, 2006
Messages
133
Reaction score
0
Location
Da A

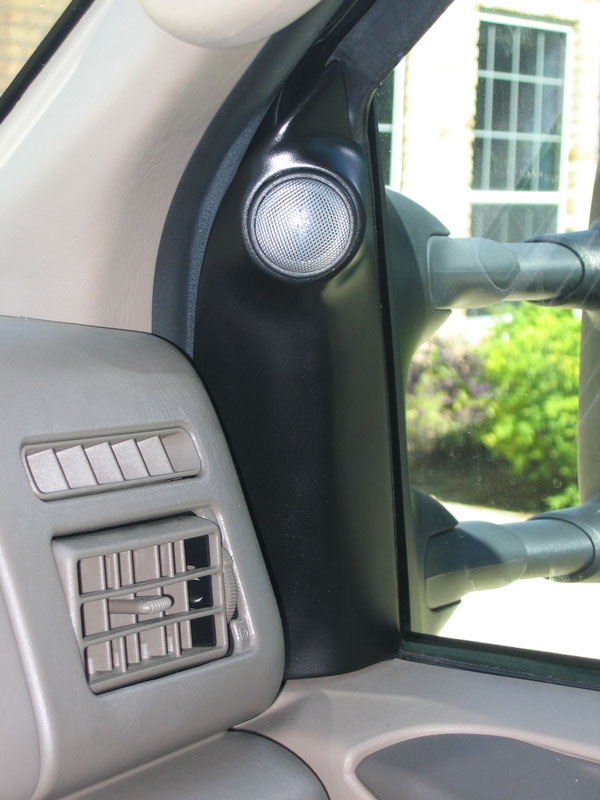

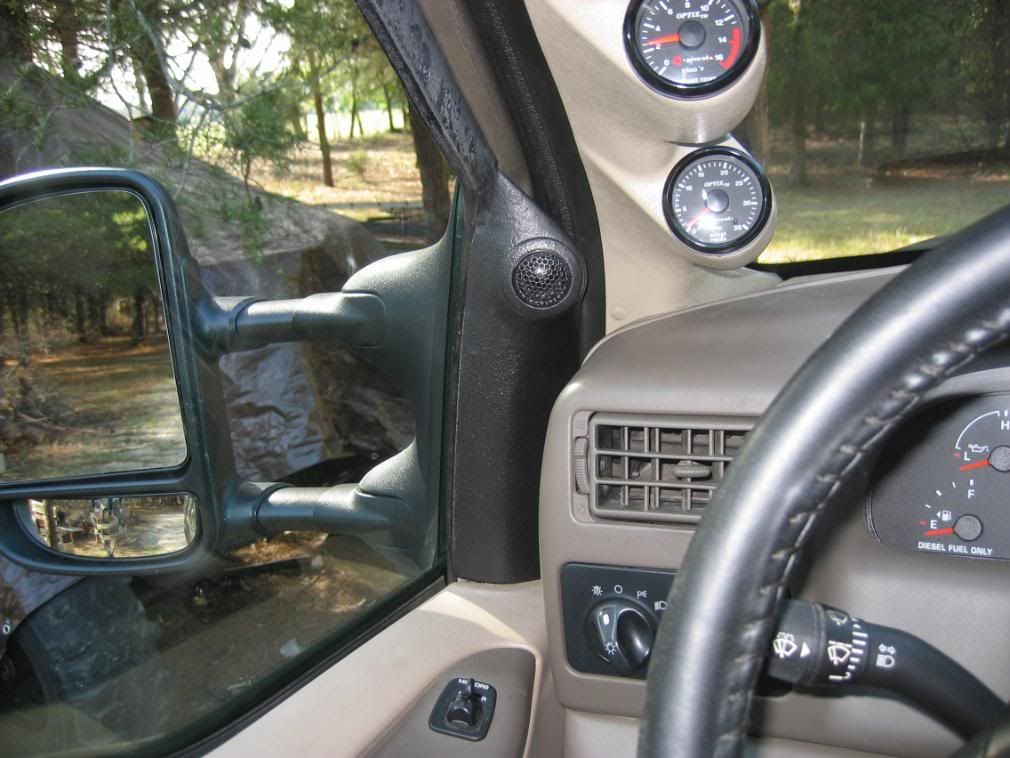

mounted up in the truck:

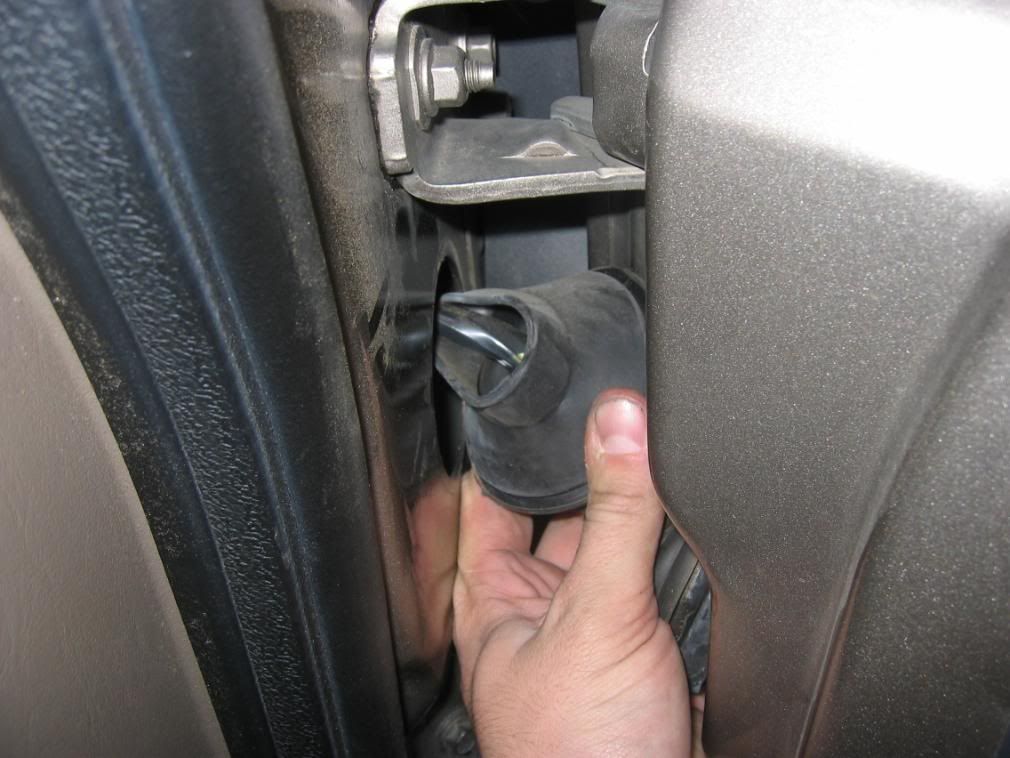

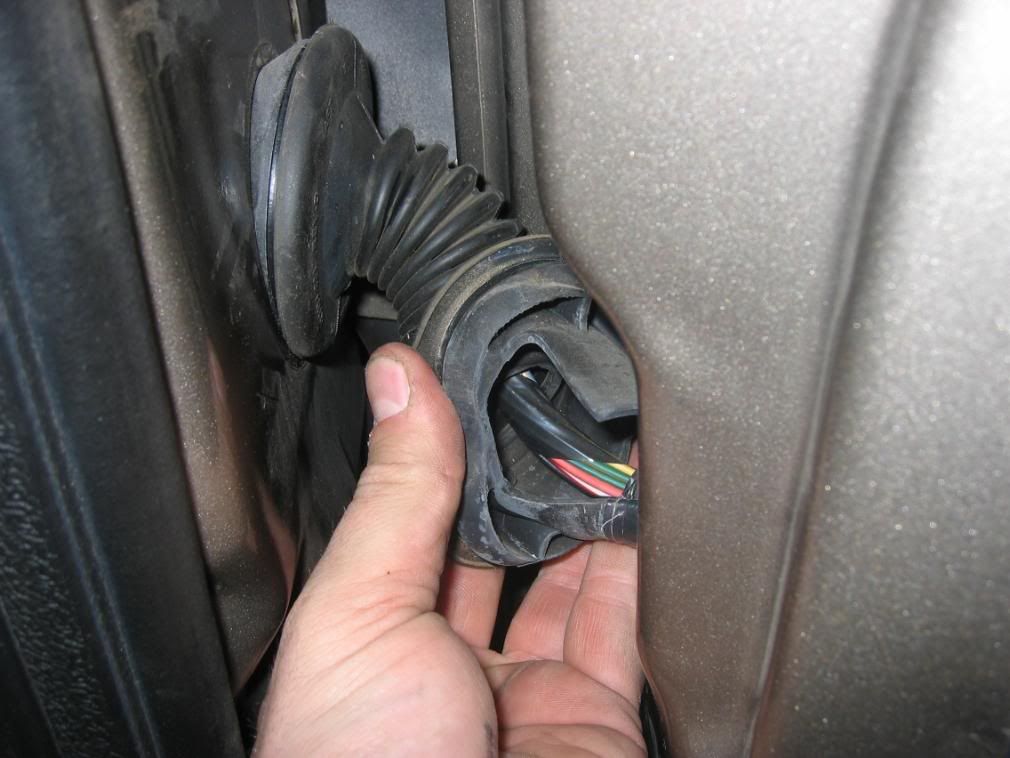

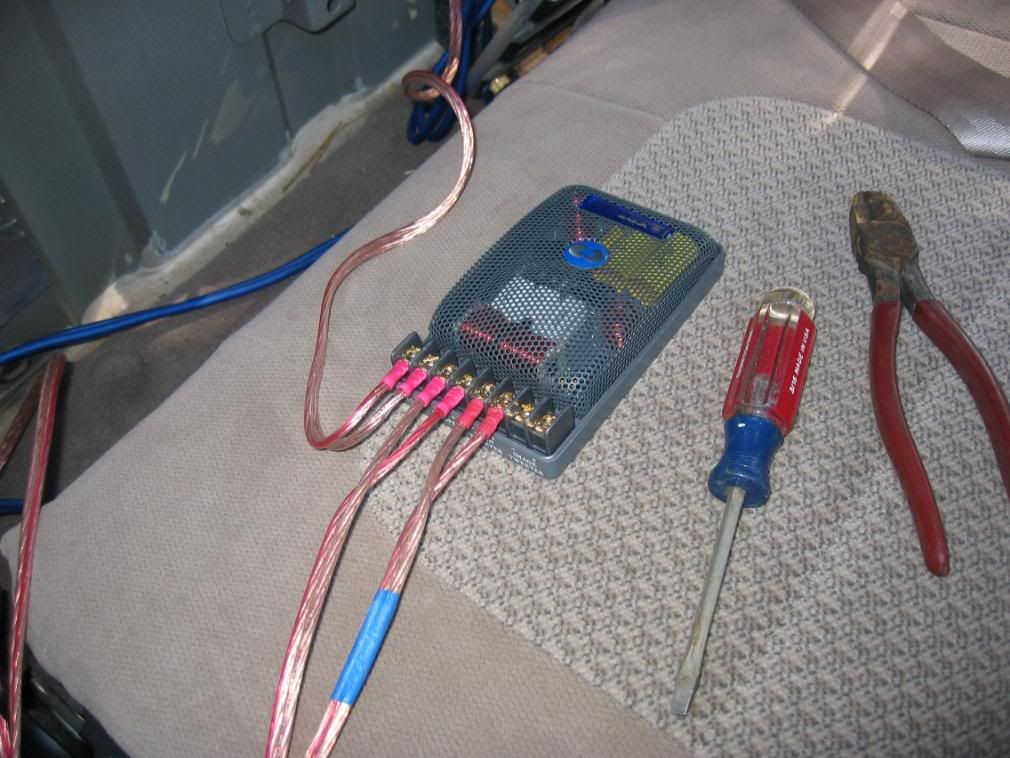

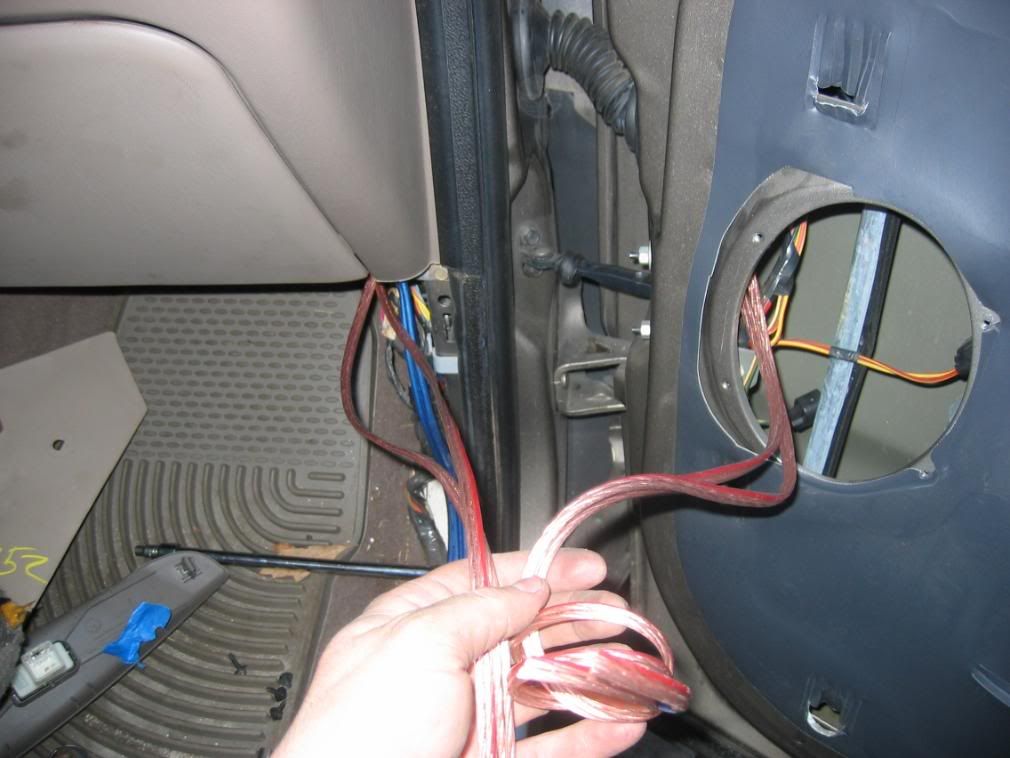

next up was the crossovers and running new wire to the doors:












i'm still waiting on my speaker adapter plates to come in before I can finish it up. I also want to put a little sound deadening on the back wall, so that'll come tomorrow. look for more pics tomorrow night.

also, unrelated....

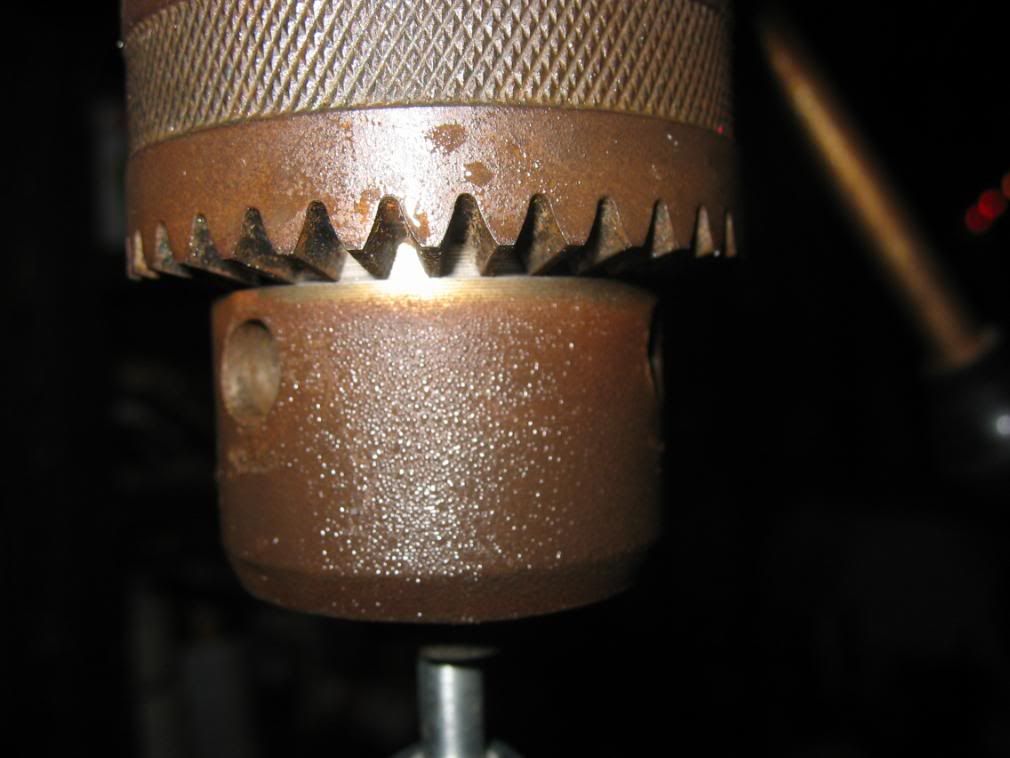

you think you've got humidity? this is the chuck of my drill press, indoors:



enjoy. if you have any q's, let me know.

Last edited:

BamaSixGun

SDD Super Mod/Staff
Joined
May 19, 2006
Messages
7,050
Reaction score
4
Location
Alabama The Beautiful

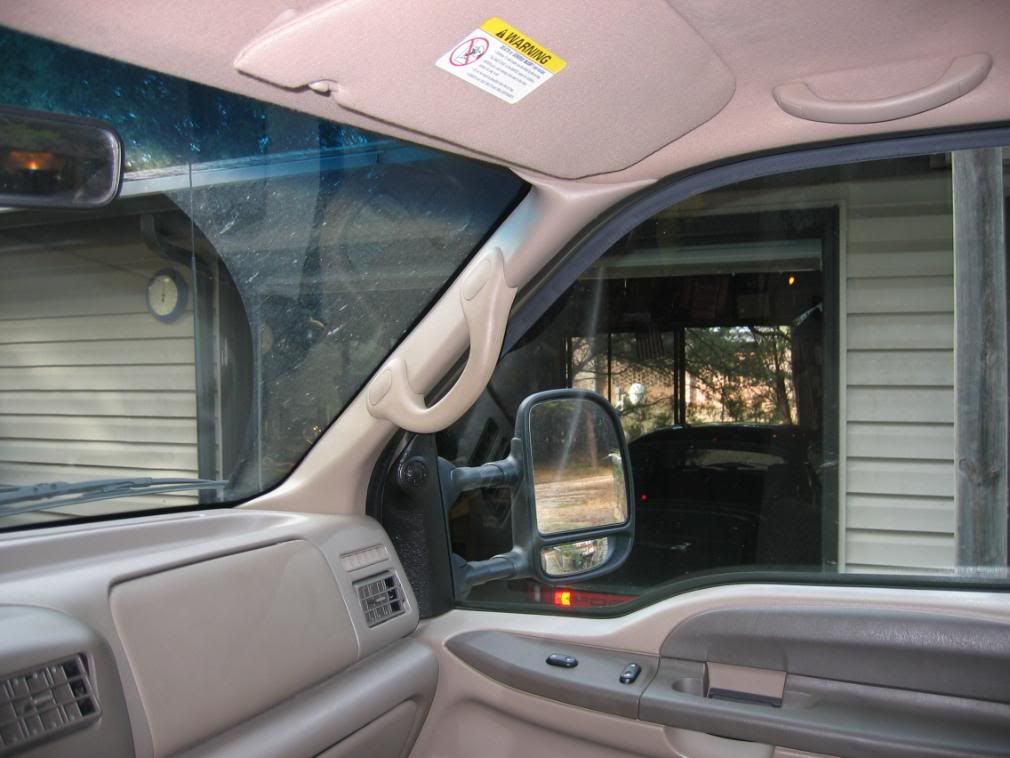

Nice job Paul. I noticed while test driving a 2008 F450 a few weeks ago, that they have factory mounted tweets in the mirror bolt covers too.
