Missing/no power

[JLDickmon]

let's check the cable from the battery to the GPR...

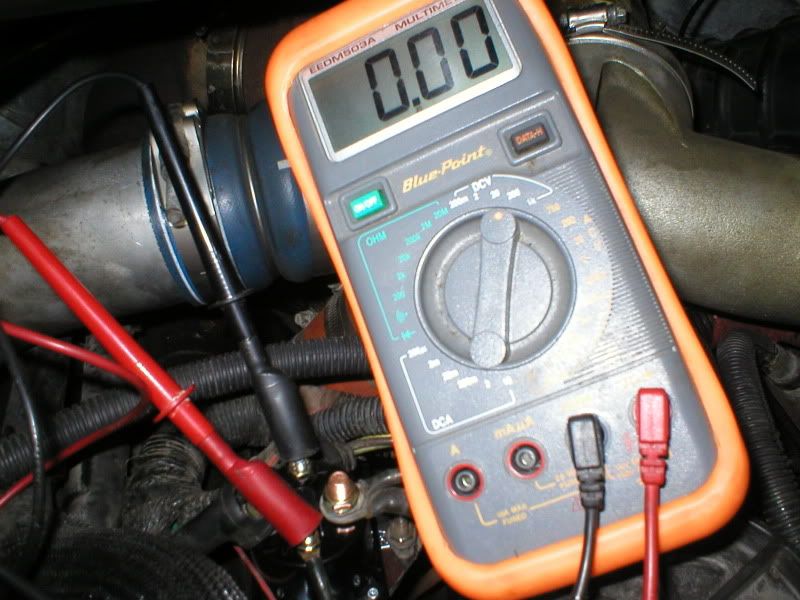

here's the source side battery terminal and connection..

O drop.. what we're looking for..

and the negative side OF THE CABLE, with it's reading..

.04 volts..
we're calling that a good cable..



[JLDickmon]

OK.. so what is the drop across the low amp side of the relay?

hey..
that's a good coil winding



[JLDickmon]

OK... now, what does the high amp and relay contacts drop?
NOTE: ENERGIZE THE RELAY!

.13 volt..
would hope it would be less, but still acceptable..

.25 volt across a contact, or .2 volt across a cable is good



[JLDickmon]

we've got a good GPR and circuit here..
let's ohm a glow plug..

rut roh, Shaggy..
this one looks open...



[JLDickmon]

now, let's check this one...

.7 ohm.. good glow plug..



[JLDickmon]

let's hotwire the one that read OPEN and test it..

yep.. no glow..



[JLDickmon]

now let's do the same thing to the one that read .7 ohms..

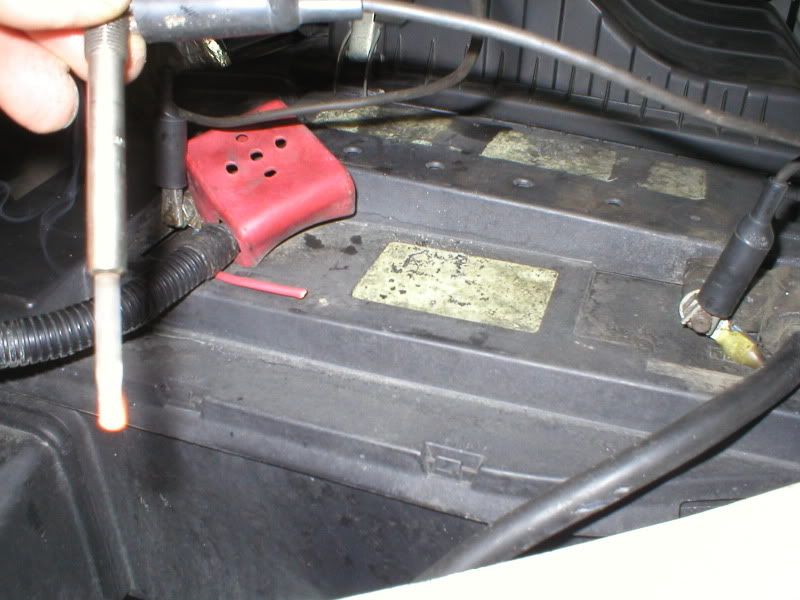

2 seconds to cherry...
good glow plug



[JLDickmon]

to make a log story a shorter one, I had two junk glowplugs and the truck started HARD..
and ran like crap cold...
